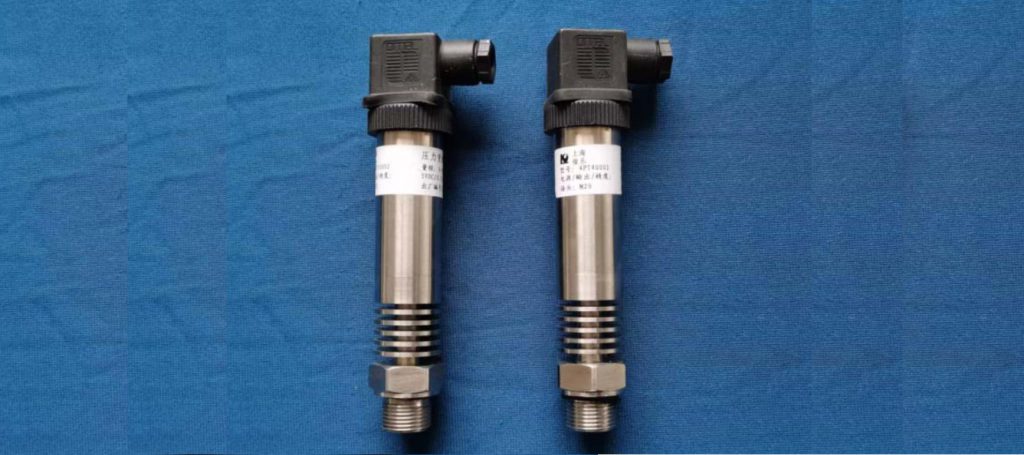

6PT series pressure transmitter (high temperature resistant)
Overview
The 6PT series high-temperature pressure transmitter adopts a high-performance diffusion silicon pressure sensor solution, combined with a dedicated integrated circuit design, to output standard current or voltage signals, making it easy to connect and use with PLCs, control instruments, etc.
Application area
The 6PT series pressure transmitter has CE certification, reliable quality, and is widely used in process control of various complex environments such as petrochemicals, medical and health care, food and beverage, air conditioning refrigeration, aerospace, etc.
Technical Parameter
| Pressure range | 0 ～ 400 bar |
| Proof pressure | 1.5X |
| Burst pressure | 2.0X |
| Electrical connection | Hersman, flying leads |
| Pressure connection | G1/4、M20 |
| Medium temperature | 180℃(5 pcs fin),260℃(10 pcs fin) |
| Refrigerant compatibility | Gases and liquids, including mild corrosive gases and liquids |
| Output | 4 ～ 20mA |
| Output load | ≤(Vsupply-10)/0.02Ω |
| Accuracy ＠25℃ | ±0.2%FS、±0.5%FS |
| Long-term stability | ±0.2%FS / year |
| Cycle life | 1 M F.S. cycles |
